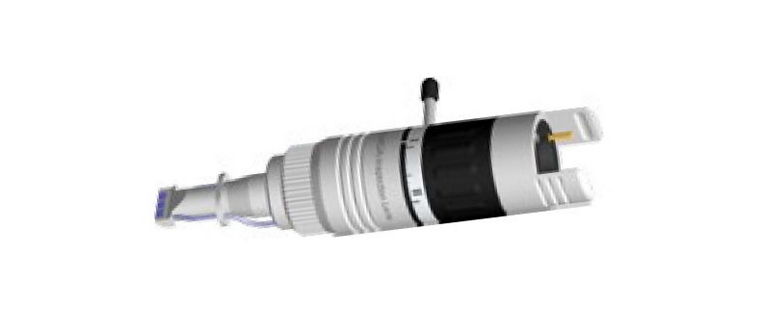

BGA Lens, 90° Optical Head
Interchangeable optics 90° for Ersa Mobile Scope
Artikelnr. 0VSSE060-90K
BGA objective, 90° optics for MOBILE SCOPE for inspecting BGA components with 1.27 mm pitches
Image magnification: 5x to 280x
Working distance: 0.5 mm - 100 mm (focus range)
Field of view (FoV): 1.2 - 50 mm
Contact surface: 0.8 x 7.1 mm
Attachable to MOBILE SCOPE basic unit
The LED fibre light 0VSLS030 is also required to generate the backlight required for BGA inspection!
